APPLICATION: Vertical
INSTALLATION: External
WIND RESISTANCE: Class 2-3

Roller blinds with AISI 316/304 stainless steel cable tracks, specially designed for outdoor applications. A series of refined awnings, with or without headbox, including cables and stainless steel tensioner or fixing brackets; possibility of frontal or floor mounting.
Available in manual version with winch or motorized.

PRODUCT MARKED EN 13561 CLASS 2 EN 13561 CLASS 3

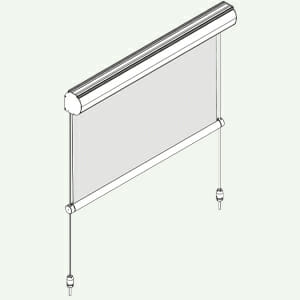

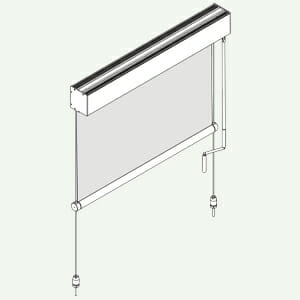

CHARACTERISTICS

Application: vertical

Installation: outdoor

Headbox: C105/CT105 extruded aluminum headbox with removable cover and aluminum end cheeks. On supplement end cheeks for side mounting

Roller tube: Ø 78 mm galvanized steel tube with slot to facilitate fabric removal

Side channels:  Ø 4 mm, 19 strand stainless steel (AISI 316) wire cable guides

Hem bar: FD42 round extruded aluminium bottom rail with internal galvanized steel weight and POM end caps

Operation: TS gear box ratio 1:9 in zama without endstop. Ø 13 mm removable aluminum crank rod with magnetic coupling, PVC coated jointed handle and PVC clip

Upper mounting: ceiling mounting. Supplement for lateral mounting or wall mounting with steel powder coated “L” brackets

Lower mounting: stainless steel cable tensioning unit for floor mounting or stainless steel AISI 304 brackets for wall/window frame mounting

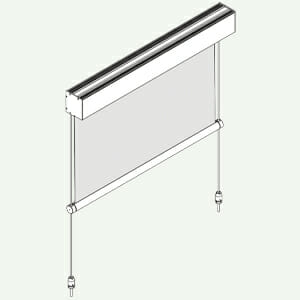

CHARACTERISTICS

 Application: vertical

Installation: outdoor

Headbox: C105/CT105 extruded aluminum headbox with removable cover and powder coated aluminum end cheeks. On supplement end cheeks for side mounting

Roller tube: Ø 60 mm extruded aluminum tube or Ø 78 mm galvanized steel tube with slot to facilitate fabric removal

Side channels:  Ø 4 mm, 19 strand stainless steel (AISI 316) wire cable guides

Hem bar: FD42 round extruded aluminium bottom rail with internal galvanized steel weight and POM end caps

Operation: motorised operation; 230V/50Hz tubolar motor M50, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance

Upper mounting: ceiling mounting. Supplement for lateral mounting or wall mounting with steel powder coated “L” brackets

Lower mounting: stainless steel cable tensioning unit for floor mounting or stainless steel AISI 304 brackets for wall/window frame mounting

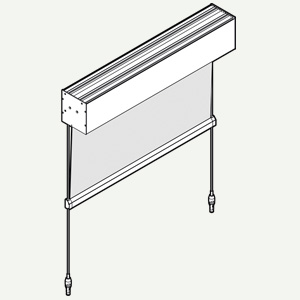

CHARACTERISTICS

Application: vertical

Installation: outdoor

Headbox: C150 extruded aluminum headbox with removable cover and powder coated zinc plated steel end cheeks. On supplement end cheeks for side mounting

Roller tube: Ø 78/85 mm galvanized steel or Ø 110 mm extruded aluminium tubes with slot to facilitate fabric removal

Side channels:  Ø 4 mm, 19 strand stainless steel (AISI 316) wire cable guides

Hem bar: FD42 round extruded aluminium bottom rail with internal galvanized steel weight and POM end caps. Alternately, on request, F56 extruded aluminum weighted flat hem bar with PVC end caps and brush

Operation: motorised operation; 230V/50Hz tubolar motor M50, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance

Upper mounting: ceiling mounting. Supplement for lateral mounting or wall mounting with steel powder coated “L” brackets

Lower mounting: stainless steel AISI 316 cable tensioning unit for floor mounting or stainless steel AISI 304 brackets for wall/window frame mounting

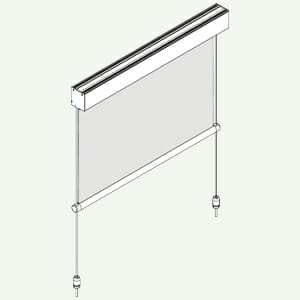

CHARACTERISTICS

Application: vertical

Installation: outdoor

Headbox: C104 extruded aluminum headbox with removable cover and aluminum end cheeks. On supplement end cheeks for side mounting

Roller tube: Ø 78 mm galvanized steel tube with slot to facilitate fabric removal

Side channels:  Ø 4 mm, 19 strand stainless steel (AISI 316) wire cable guides

Hem bar: FD42 round extruded aluminium bottom rail with internal galvanized steel weight and POM end caps

Operation: TS gear box ratio 1:9 in zama without endstop. Ø 13 mm removable aluminum crank rod with magnetic coupling, PVC coated jointed handle and PVC clip

Upper mounting: ceiling mounting with hidden brackets. Supplement for lateral mounting or wall mounting with steel powder coated “L” brackets

Lower mounting: stainless steel cable tensioning unit for floor mounting or stainless steel AISI 304 brackets for wall/window frame mounting

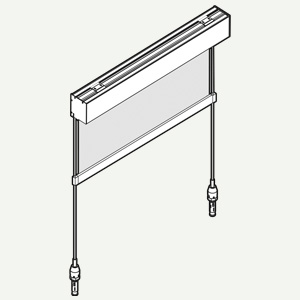

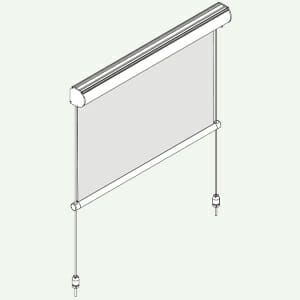

CHARACTERISTICS

Application: vertical

Installation: outdoor

Headbox: C104 extruded aluminum headbox with removable cover and powder coated aluminum end cheeks. On supplement end cheeks for side mounting

Roller tube: Ø 60 extruded aluminum tube or Ø 78 mm galvanized steel tube with slot

Side channels:  Ø 4 mm, 19 strand stainless steel (AISI 316) wire cable guides

Hem bar: FD42 round extruded aluminium bottom rail with internal galvanized steel weight and POM end caps

Operation: motorised operation; 230V/50Hz M50 tubolar motor, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance

Upper mounting: ceiling mounting with hidden brackets. Supplement for lateral mounting or wall mounting with steel powder coated “L” brackets

Lower mounting: stainless steel cable tensioning unit for floor mounting or stainless steel AISI 304 brackets for wall/window frame mounting

CHARACTERISTICS

 Application: vertical

Installation: outdoor

Headbox: C124 extruded aluminum headbox with two removable covers and aluminum end cheeks. The headbox allows to hide the tube including hem bar when shade is completely wrapped. On supplement end cheeks for side mounting

Roller tube: Ø 60 extruded aluminum tube or Ø 78 mm galvanized steel tube with slot

Side channels:  Ø 4 mm, 19 strand stainless steel (AISI 316) wire cable guides

Hem bar: FZ47 retractable extruded aluminum weighted flat hem bar with POM end caps and brush

Operation: motorised operation; 230V/50Hz tubolar motor M50, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance

Upper mounting: ceiling mounting with hidden brackets. Supplement for lateral mounting or wall mounting with steel powder coated “L” brackets

Lower mounting: stainless steel cable tensioning unit for floor mounting or stainless steel AISI 304 brackets for wall/window frame mounting

CHARACTERISTICS

Application: vertical

Installation: indoor/outdoor

Headbox: C90/CT90 extruded aluminum headbox with removable cover and aluminum end cheeks. On supplement end cheeks for side mounting

Roller tube: Ø 42/49 mm extruded aluminum tube with slot

Side channels:  Ø 4 mm, 19 strand stainless steel (AISI 316) wire cable guides

Hem bar: FD35 round extruded aluminium bottom rail with internal galvanized steel weight and POM end caps

Operation: crank operation, gear box ratio 1:3.3 in zama with endstop.
Ø 13 mm removable aluminum crank rod with magnetic coupling, PVC coated jointed handle and PVC clip

Upper mounting: ceiling mounting. Supplement for lateral mounting or wall mounting with steel powder coated “L” brackets

Lower mounting: stainless steel cable tensioning unit for floor mounting or stainless steel AISI 304 brackets for wall/window frame mounting

CHARACTERISTICS

Application: vertical

Installation: indoors/outdoor

Headbox: C90/CT90 extruded aluminum headbox with removable cover and powder coated aluminum end cheeks. On supplement end cheeks for side mounting

Roller tube: Ø 44/60 mm extruded aluminum tube

Side channels:  Ø 4 mm, 19 strand stainless steel (AISI 316) wire cable guides

Hem bar: FD35 round extruded aluminium bottom rail with internal galvanized steel weight and POM end caps

Operation: motorised operation; 230V/50Hz tubolar motor M40/M50, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance

Upper mounting: ceiling mounting. Supplement for lateral mounting or wall mounting with steel powder coated “L” brackets

Lower mounting: stainless steel cable tensioning unit for floor mounting or stainless steel AISI 304 brackets for wall/window frame mounting

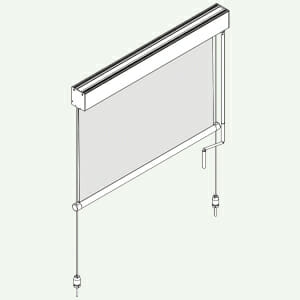

CHARACTERISTICS

Application: vertical

Installation: indoor/outdoor

Headbox: C91 extruded aluminum headbox with removable cover and aluminum end cheeks. On supplement end cheeks for side mounting

Roller tube: Ø 42/49 mm extruded aluminum tube with slot

Side channels:  Ø 4 mm, 19 strand stainless steel (AISI 316) wire cable guides

Hem bar: FD35 round extruded aluminium bottom rail with internal galvanized steel weight and POM end caps

Operation: crank operation, gear box ratio 1:3.3 in zama with endstop.
Ø 13 mm removable aluminum crank rod with magnetic coupling, PVC coated jointed handle and PVC clip

Upper mounting: ceiling mounting with hidden brackets. Supplement for lateral mounting or wall mounting with steel powder coated “L” brackets

Lower mounting: stainless steel cable tensioning unit for floor mounting or stainless steel AISI 304 brackets for wall/window frame mounting

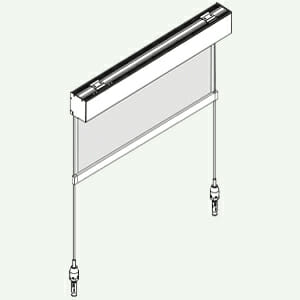

CHARACTERISTICS

Application: vertical

 Installation: indoors/outdoor

Headbox: C91 extruded aluminum headbox with removable cover and powder coated aluminum end cheeks. On supplement end cheeks for side mounting

Roller tube: Ø 44/60 mm extruded aluminum tube

Side channels:  Ø 4 mm, 19 strand stainless steel (AISI 316) wire cable guides

Hem bar: FD35 round extruded aluminium bottom rail with internal galvanized steel weight and POM end caps

Operation: motorised operation; 230V/50Hz M40/M50 tubolar motor, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance

Upper mounting: ceiling mounting with hidden brackets. Supplement for lateral mounting or wall mounting with steel powder coated “L” brackets

Lower mounting: stainless steel cable tensioning unit for floor mounting or stainless steel AISI 304 brackets for wall/window frame mounting

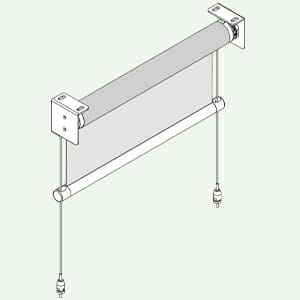

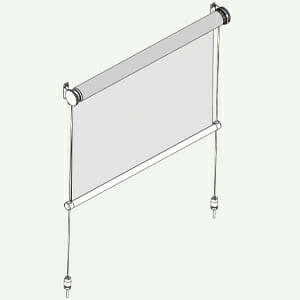

CHARACTERISTICS

Application: vertical

Installation: indoor/outdoors. Specially designed for an extreme adaptability during installation. The position of the mounting brackets and the distance between the wall and the cable guides may be adjusted on site, hence eliminating problems of slanted ceilings/walls

Brackets: 80×92 mm steel powder coated brackets and interior plates with PVC covers (white, grey, black). The angle of the interior plate can be adjusted at intervals of 22° to distance the cable from the wall

Roller tube: Ø 60 mm extruded aluminium tube with slot

Side channels:  Ø 4 mm, 19 strand stainless steel (AISI 316) wire cable guides

Hem bar: FD35 round extruded aluminium bottom rail with internal galvanized steel weight and POM end caps

Operation: motorised operation; 230V/50Hz tubolar motor M50, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance

Upper mounting: wall or ceiling

Lower mounting: stainless steel cable tensioning unit for floor mounting or stainless steel AISI 304 brackets for wall/window frame mounting

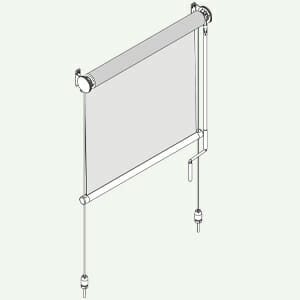

CHARACTERISTICS

Application: vertical

Installation: indoor/outdoors. Specially designed for an extreme adaptability during installation. The position of the mounting brackets and the distance between the wall and the cable guides may be adjusted on site, hence eliminating problems of slanted ceilings/walls

Brackets: 80×92 mm steel powder coated brackets and interior plates with PVC covers (white, grey, black). The angle of the interior plate can be adjusted at intervals of 22° to distance the cable from the wall

Roller tube: Ø 42/49 mm extruded aluminum tube with slot

Side channels:  Ø 4 mm, 19 strand stainless steel (AISI 316) wire cable guides

Hem bar: FD35 round extruded aluminium bottom rail with internal galvanized steel weight and POM end caps

Operation: winch operation; gear box ratio 1:3.3 in zama with endstop,
Ø 13 mm removable aluminium crank rod with magnetic coupling, PVC coated jointed handle and PVC wall clip

Upper mounting: wall or ceiling

Lower mounting: stainless steel cable tensioning unit for floor mounting or stainless steel AISI 304 brackets for wall/window frame mounting

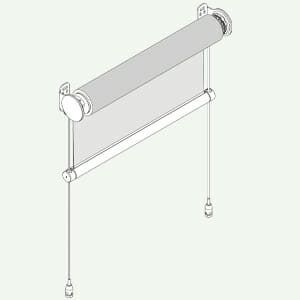

CHARACTERISTICS

Application: vertical

Installation: outdoors. Specially designed for an extreme adaptability during installation. The position of the mounting brackets and the distance between the wall and the cable guides may be adjusted on site, hence eliminating problems of slanted ceilings/walls

Brackets: 110×120 mm steel powder coated brackets and interior plates with PVC covers (white, grey, black). The angle of the interior plate can be adjusted at intervals of 22° to distance the cable from the wall. Supplement for AISI 304 stainless steel brackets

Roller tube: Ø 78/85 mm galvanized steel tube with slot to facilitate fabric removal

Side channels:  Ø 4 mm, 19 strand stainless steel (AISI 316) wire cable guides

Hem bar: FD42 round extruded aluminium bottom rail with internal galvanized steel weight and POM end caps

Operation: motorised operation; 230V/50Hz tubolar motor M50, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance

Upper mounting: wall or ceiling

Lower mounting: stainless steel cable tensioning unit for floor mounting or stainless steel AISI 304 brackets for wall/window frame mounting

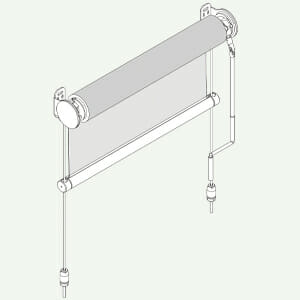

CHARACTERISTICS

Application: vertical

Installation: outdoors. Specially designed for an extreme adaptability during installation. The position of the mounting brackets and the distance between the wall and the cable guides may be adjusted on site, hence eliminating problems of slanted ceilings/walls

Brackets: 110×120 mm steel powder coated brackets and interior plates with PVC covers (white, grey, black). The angle of the interior plate can be adjusted at intervals of 22° to distance the cable from the wall.Supplement for AISI 304 stainless steel brackets

Roller tube: Ø 78/85 mm galvanized steel tube with slot

Side channels:  Ø 4 mm, 19 strand stainless steel (AISI 316) wire cable guides

Hem bar: FD42 round extruded aluminium bottom rail with internal galvanized steel weight and POM end caps

Operation: winch operation; gear box ratio 1:9 in zama without endstop, Ø 13 mm removable aluminium crank rod with magnetic coupling, PVC coated jointed handle and PVC wall clip

Upper mounting: wall or ceiling

Lower mounting: stainless steel cable tensioning unit for floor mounting or stainless steel AISI 304 brackets for wall/window frame mounting

CHARACTERISTICS

Application: vertical

Installation: outdoors

Brackets: 120×130 mm steel powder coated brackets

Roller tube: Ø 78/85 mm galvanized steel tube with slot to facilitate fabric removal

Side channels:  Ø 4 mm, 19 strand stainless steel (AISI 316) wire cable guides

Hem bar: FD42 round extruded aluminium bottom rail with internal galvanized steel weight and POM end caps

Operation: motorised operation; 230V/50Hz tubolar motor M50, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance

Upper mounting: wall or ceiling

Lower mounting: stainless steel cable tensioning unit for floor mounting or stainless steel AISI 304 brackets for wall/window frame mounting
